ToFscan is a neuromuscular transmission monitor for the quantitative and objective monitoring of the neuromuscular blockade and the patient’s reversal.
A realistic and complete measurement of the evoked muscle responses is achieved with the 3D accelerometry technology. The user obtains objective results for the selected quantitative stimulation modes. ToFscan is the most reliable way to ensure the absence of residual neuromuscular block.

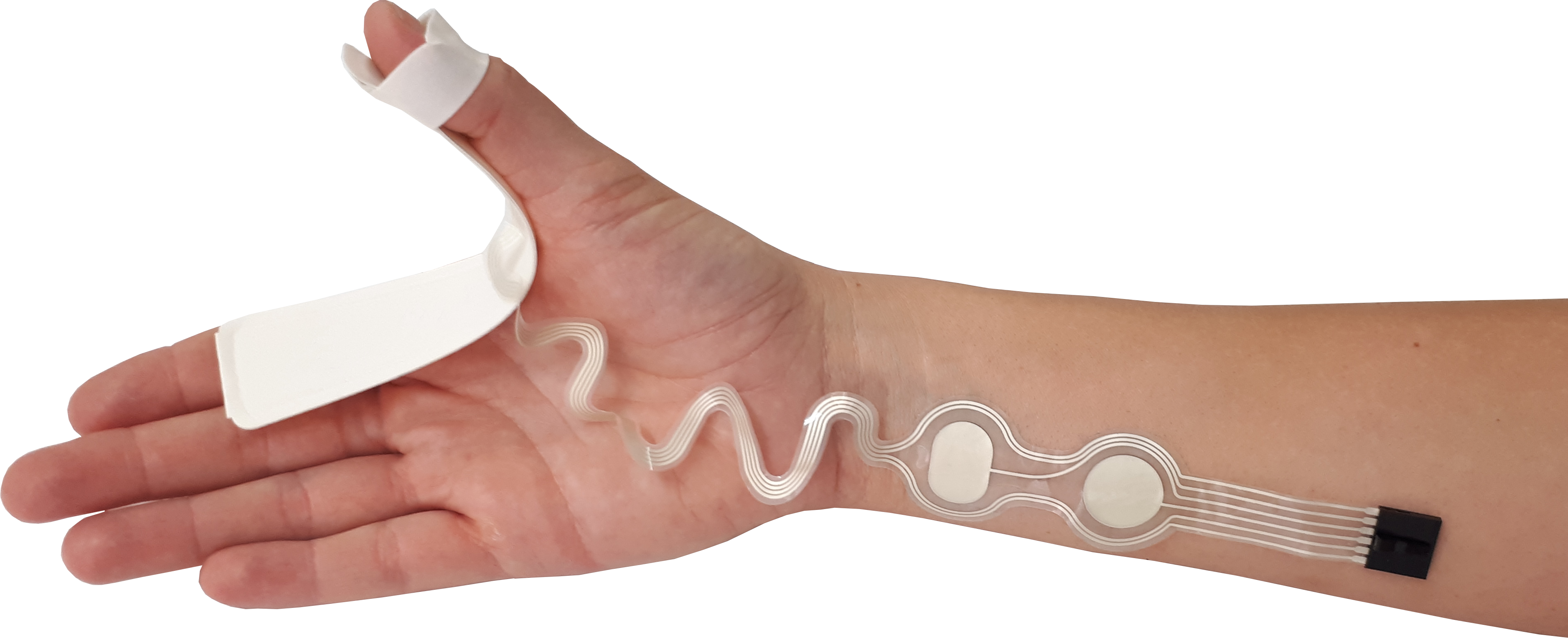

The only 3D-AMG single-use sensor
- No calibration
- Soft material to avoid injury to the patient
- 3D-AMG, no compromise in accuracy and quality
- Integrated electrodes
Suitable for all practices

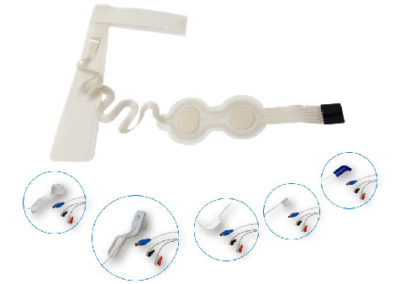

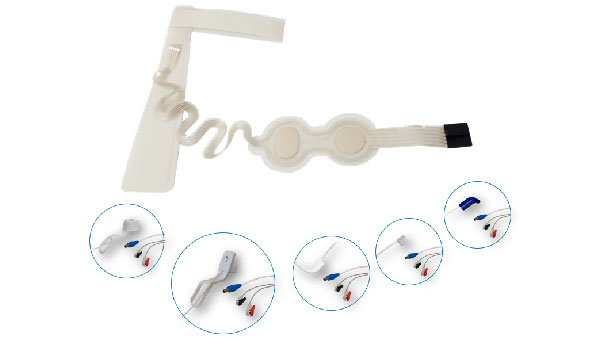

ToFscan has a range of six specific sensors to monitor different sites that do not require any calibration. The ergonomic shape of the sensors makes the measurements reliable while facilitating the work of placing them by the operator.
Simple and ergonomics

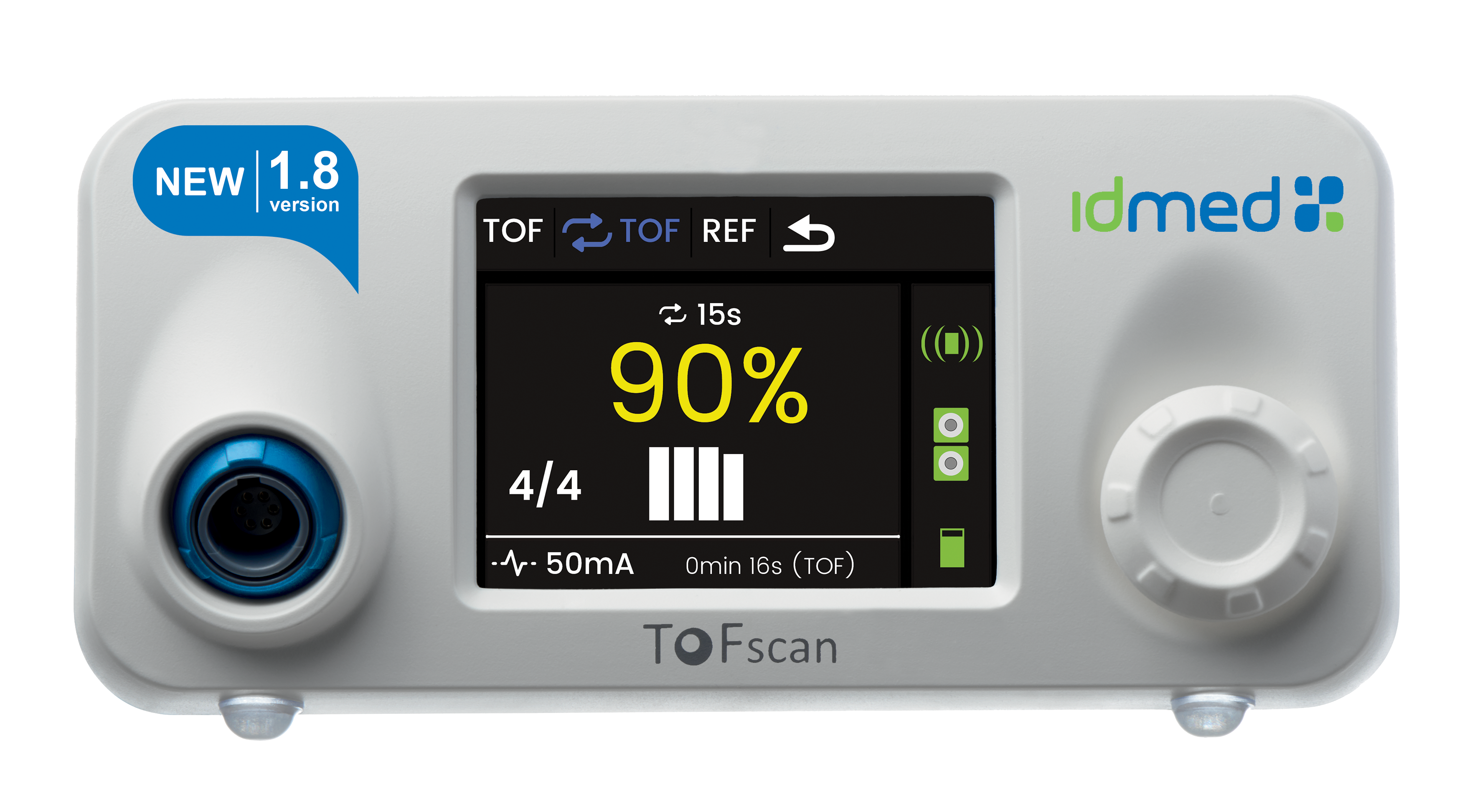

While integrating innovative technology the ToFscan is simple to use.
Its operation both on battery and mains makes it autonomous, mobile and usable in situ.
Its fixing clamp enables it to be optimally positioned and protects it against the risk of falling. The general design, the screen and the one wheel-button selection makes the ToFscan user-friendly and easy for anyone to handle. The ATP mode ensures a simplified and continuous monitoring of the neuromuscular blockade, from induction to complete reversal of the patient in an automatic and secure way by combining TOF and PTC.
- TOF (Train Of Four)

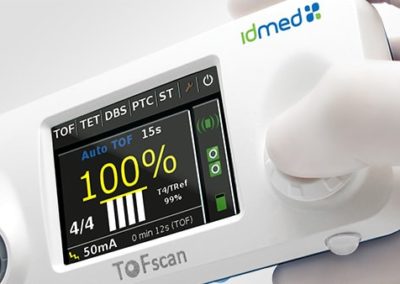

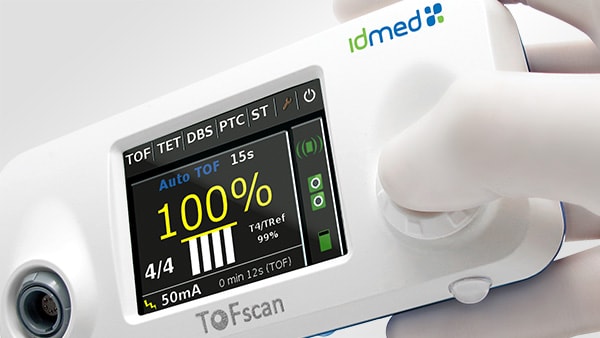

- Automatic TOF
- ATP (Automatic TOF-PTC)
- DBS (3.3, 3.2)
- Single Twitch (0,1 ; 1 Hz)
- Tetanus 50 Hz
- TOF mode : T4/T1
- TOF mode : T4/Tref
- TOF mode : count

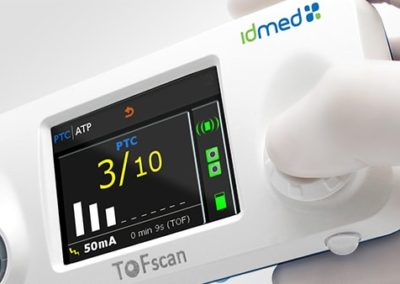

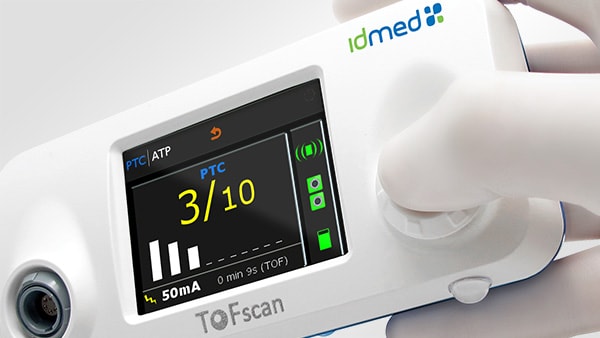

- PTC mode : count
- DBS mode : count
- Three-dimensional accelerometer sensor
- Adjustable stimulation current (20-60 mA)
- Automatic switch-off
- Battery and mains operated
- Audio message (can be switched off)
- Fixing clamp for bracket
- No calibration required
STANDARDS AND SAFETY
- EN 60601-1 (Medical Electrical Equipment)
- EN 60601-1-2 (EMC)
- 2A CE Class (CE 0459)
- FDA Approved 510k
Colegrave N, Billard V, Motamed C, Bourgain JL.
Quantitative neuromuscular monitoring is now widely recommended during anesthesia using neuromuscular blocking agents to prevent postoperative residual paralysis and its related complications. We compared the TOF-Watch SX™ accelerometer requiring initial calibration to the TOF-Scan™, a new accelerometer with a preset stimulation intensity of 50mA not necessitating calibration.
